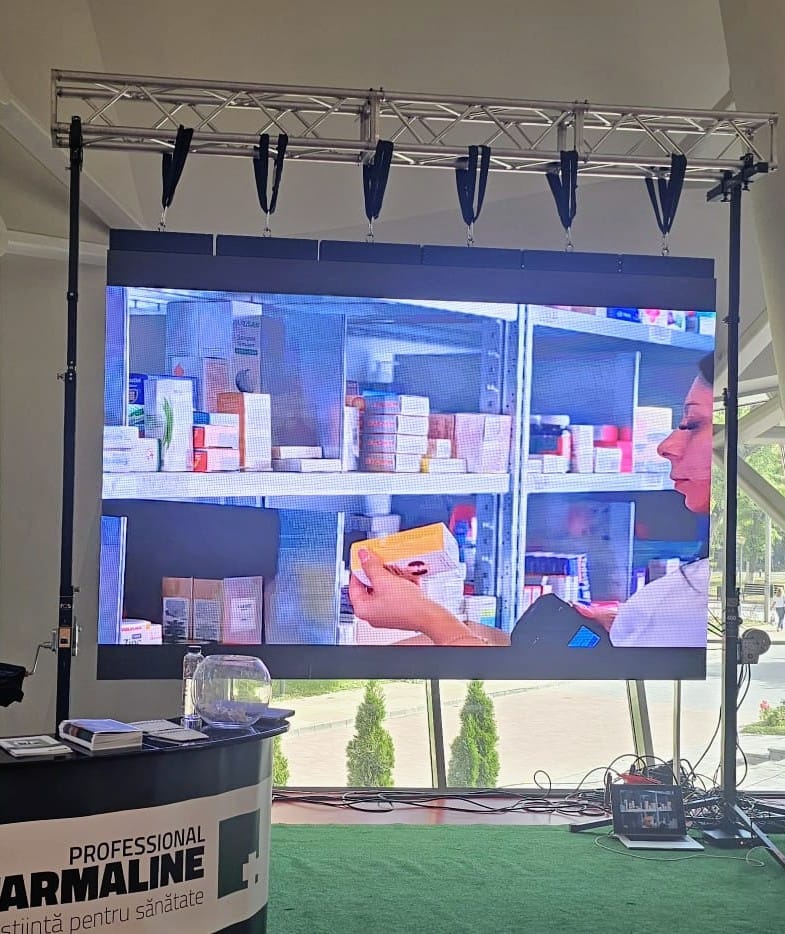

Ecran tip rental/montaj fix Pitch 2.97 mm 3x2 metri - 6 mp
Ecran montaj tip rental sau fix Pitch 2.97 mm
Pret/m.p.= 1.500 Euro +TVA, kit complet
Pret total 12.500 Euro + TVA, include:
Ecran LED 6 mp (24 Cabinete)
Sistem de ridicare cu turnuri, 2 trase triunghiulare de 2 metri (total 4 metri), Hangingbars 6 buc.
Videoprocesor Novastar VX 400 PRO IS
Flightcase-uri 5 buc
Toate cablurile si piese de schimb
Garantie 2 ani
Ecranul este de tip front service!
Caracteristici:
| Item | Specification Parameter | |
| Pixel Pitch、Resolution of module、size | 2.97mm、64*64、250*250*16mm | |
|
1R1G1B、 SMD2121 3in1 | |
| Working voltage、Module Power |
DC 4.5V, 28W
|
|
| Driving IC、Driving way | ICN2153、1/28 | |
| HUB | HUB(AXS-500X500F)-V1.0 | |
| Material、Cabinet Weight(kg/Cabinet) | Cast aluminum、6.4kg/Cabinet | |
| Resolution rate、size、Module quantity | 168*168Dots、500*500*90m、2*2 | |
| Density | 112896 Dots/㎡ | |
| White balance | 7000CD/㎡、 | |
| view angle、Non-Flatness、Module interval | H/V：120°/120°、＜0.2mm、＜0.2mm | |
| Maximal power/㎡、Average power/㎡ | 450W/㎡、135W/㎡ | |
| Frame frequency、Refresh frequency、Gray grade | 60Hz、2800~3840Hz 、≥14bit | |
| Control system、System supports | NOVASTAR，Windows | |
| Working temperature、Protection grade | -20~50℃、Front/Back：IP45 |
Characteristic
Module features：
1,Easy：Modular design, easy assembly and maintenance.
2，module size：250*250mm ,Smooth surface, module gap small ，High precision
Cabinet features：
● Light：Cabinet size:500*500*86mm, Weight:7.9kg/pc.
● Thin：Die-cast aluminum design, high precision, thickness only 86mm.
● Fast：Fast locks, Easy to assemble and disassemble.
● Compatibility：Available pixel pitch for P2.6，P2.97, P3.91，P4.81；
● Low：Excellent cooling design, no fans or air-conditioners needed
noiseless, low power consumption.
