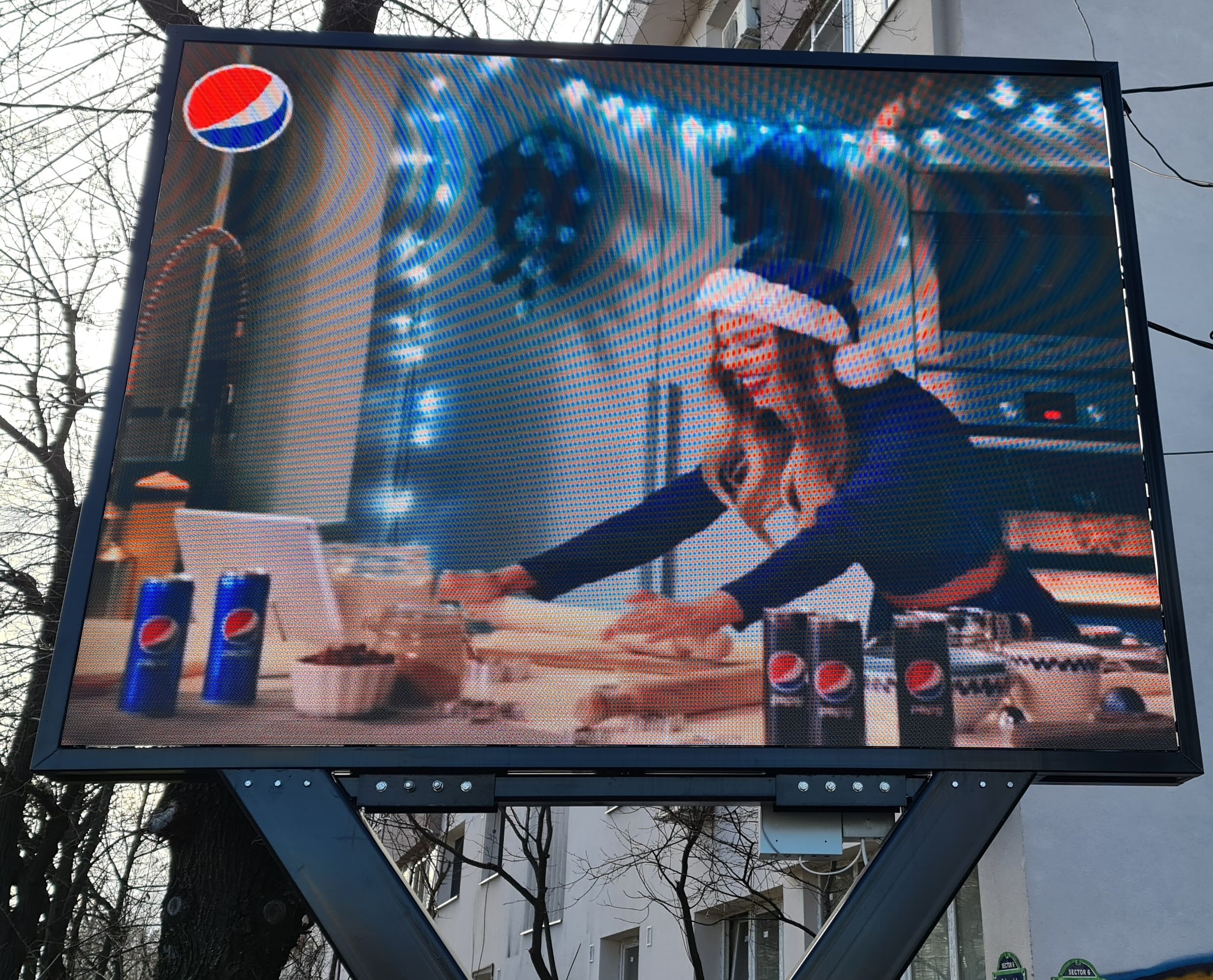

Ecran LED de inalta rezolutie, Pitch 4.81 mm, carcasa de aluminiu cu dimensiuni diverse:500x750mm,500x1000mm, 500 x 500 mm
Mentenanta frontala (front service)
Remove the module, open the front panel buckle of the control box, remove the front panel and the entire large adapter plate (both power supply and card are fixed on the large adapter plate), and unplug the connector to maintain the power supply; remove the fixing screws of the receiving card or adapter plate to maintain the receiving card or adapter plate.
.png)
Fast installation
The left and right quick locks between the cabinets are quickly installed. For front installation, both the quick installation with a hanging pin and the installation mode of connecting piece and steel structure are optional. Rear installation comes standard with the cabinet connecting pieces, along with the structural drawings for installation.
SPECIFICATII
|
Parameter |
L4.8X |
|||
|
Physical Parameter |
Pixel Configuration |
SMD1921 |
||
|
Pixel Pitch （mm） |
4.8 |
|||
|
Pixel matrix per panel |
104x104/156/208 |
|||
|
Pixel density（pixels/sq.m.） |
43264 |
|||
|
Cabinet Dimensions (LxWxH)/（mm） |
500x500/750 |
|||
|
Module Dimensions (LxWxH)/（mm） |
500x250 |
|||
|
Panel material |
Aluminum Profile |
|||
|
Cabinet weight (kg/panel) |
9/13/16 |
|||
|
Module weight (kg/panel) |
1.57 |
|||
|
Electronic Parameter |
Color Grayscale (Bit) |
14bit |
||
|
Contrast
|
7682:1
|
|||
|
Gray Scale per Color （level) |
16384 |
|||
|
Refresh Rate（Hz） |
3840 |
|||
|
Driving Type |
1/9 |
|||
|
Signal Transmission Distance （m） |
CAT5 cable:＜100 m; |
|||
|
Optical Parameter |
Brightness（nit） |
5000-7500 |
||
|
Optimal Horizontal Viewing Angle（°） |
150 |
|||
|
Optimal Vertical Viewing Angle（°） |
Up 40/down 55 |
|||
|
Electrical Parameter |
AC Input Voltage（V） |
AC: 100V～240V |
||
|
AC Input Frequency（Hz） |
50 |
|||
|
AC Input Power Maximum Value（W/m²） white collor |
615 |
|||
|
AC Input Power Typical Value（W/m²） |
238 |
|||
|
Circumstance Parameter |
Storage Temperature（℃） |
‐40 ‐60 |
||
|
Working Temperature (℃) |
-30 - +60 |
|||
|
IP rating (Front/Rear) |
IP65/IP54 |
|||
|
Storage Humidity (RH) |
10%~90% non‐condensing |
|||
|
Working Humidity (RH) |
10%~90% non‐condensing |
|||
|
Lifetime Typical Value（hrs） |
100000 |
|||
|
Installation Type |
Cabinet installation type |
Fix |
||
